SL-2100 pir motion detector alarm

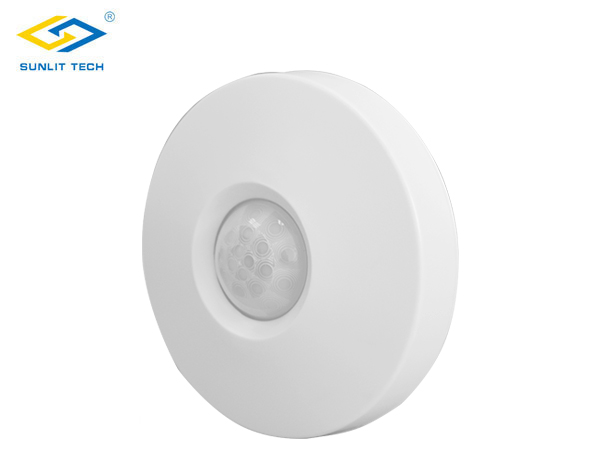

SL-2100:PIR Motion Detector For Lamp or LED Control
Features:
Operation voltage: AC180V-250V(50/60Hz)
Self power consumption:<0.5W(micro consumption switch<0.016W)
Detection range: 140·taper angle,5-8m(HP9901 is 120·taper angle)
Delay time: 16s-350s adjustable;
Sensitivity: 5LUX-500LUX adjustable;
Operation temperature： -20℃—+50℃;

Specifications：
This auto control product is based on PIR technology,
when somebody enters the detected range, the particular PIR sensor
can detect the change of PIR spectrum from human body,
the switch connects the loading automatically.
If human body doesn't leave the detected range,
the switch will keep connected continually; when body leaves,
the switch delays to turn off the load automatically. When people arrive,
light will turn on; when people leave, light turns off. It is very convenient
and safety, also energy-saving.
Mono-polarity design: same as common wall switches with two cables connection to
various loads, no need of any parts. The minimum power can reach 5W.
Auto detection: When people come, switch gets connected; when people leave,
delay to turn off.
Non-contact electronic switch: no big surge at the moment of load connection,
prolong its usage life.
Auto light sensing: when light is too strong, the default setting is no
sensing.
It is with light sensitivity adjustment. ( Can be set to sense at any light or
all-day sensing.)
Auto stochastic delay (continuous delay way): When man is moving in the
detection range, switch will get connected always until man leaves. There is
non-continuous delay time for option.
Delay time adjustable: 16-350 seconds, or quarter of 1 second to 30 minutes according to user’s special needs.
Super low power consumption: self power consumption<0.016W,
its energy saving is 180 times
than the similar products from other suppliers.
Thundering proof function: it is equipped with thundering proof parts,
can avoid damage from sudden high voltage from thundering and lightning etc.
Emergent fire fighting function: when there is fire or some other status,
all lights can be forced to turn on with “long range fire fighting control”
in order to emergent lighting. (Need to lay a particular fire fighting control
cable)
Application:
It can be used in corridor, terrace, toilet, basement, warehouse, garage etc.
for auto lighting, auto ventilation or auto control on other electric appliances.
Also can be used for guarding against intrusion alarm .
