SL-G30

A GSM home alarm system is a wireless home security product.

  • Commodity name: SL-G30
  • Product Details
  • SL-GW30: Smart touch keypad security Alarm System With APP And SMS Operation

    Product Description

    ABOUT YOUR ALARM SYSTEM
    This is your smart alarm system. All sensors are wirelessly connected to the panel. The panel is always watching the sensors in your home to see if something is wrong. If one of the sensors reports
    that something is wrong while the system is armed, the panel begins sounding, and an alarm text notification is sent and an alarm call is made to all registered users.


    Alarm Panel x1
    Door/Window Sensor x1
    Motion Sensor x1
    USB Cable x1
    End of Line Resistors(EOLR) for Hardwired Zones x3
    EOLR Hardwired Zones Connections x1
    User Guide x1
    Optional.
    Power Adapter Remote Tag
    RFID Tag
    Wireless Siren Wireless Keypad
    Doorbell Button
    SPECIFICATIONS
    Alarm Panel


    Power Supply: Micro USB 110/220VAC to 5V, 1000mA
    Backup Battery: 3.7V, 500mAh Lithium Battery
    Consumption: <150mA@normal
    Siren Output: <500mA@high volume mode, <50mA@low volume mode Radio Frequency: 433Mhz RFID Reader: 125KHz/EM4100 Family (with a reading distance of 1~2cm)
    Cellular: 850/900/1800/1900MHz (for 2G model)
    Wi-Fi: IEEE802.11b/g/n Connectivity: wireless siren, up to 10 remote tags, up to 10 RFID tags and up to 100 sensors Contact ID: 1400-2300Hz DTMF(10 cps) 1400Hz Operation Temperature: -10~55ºC

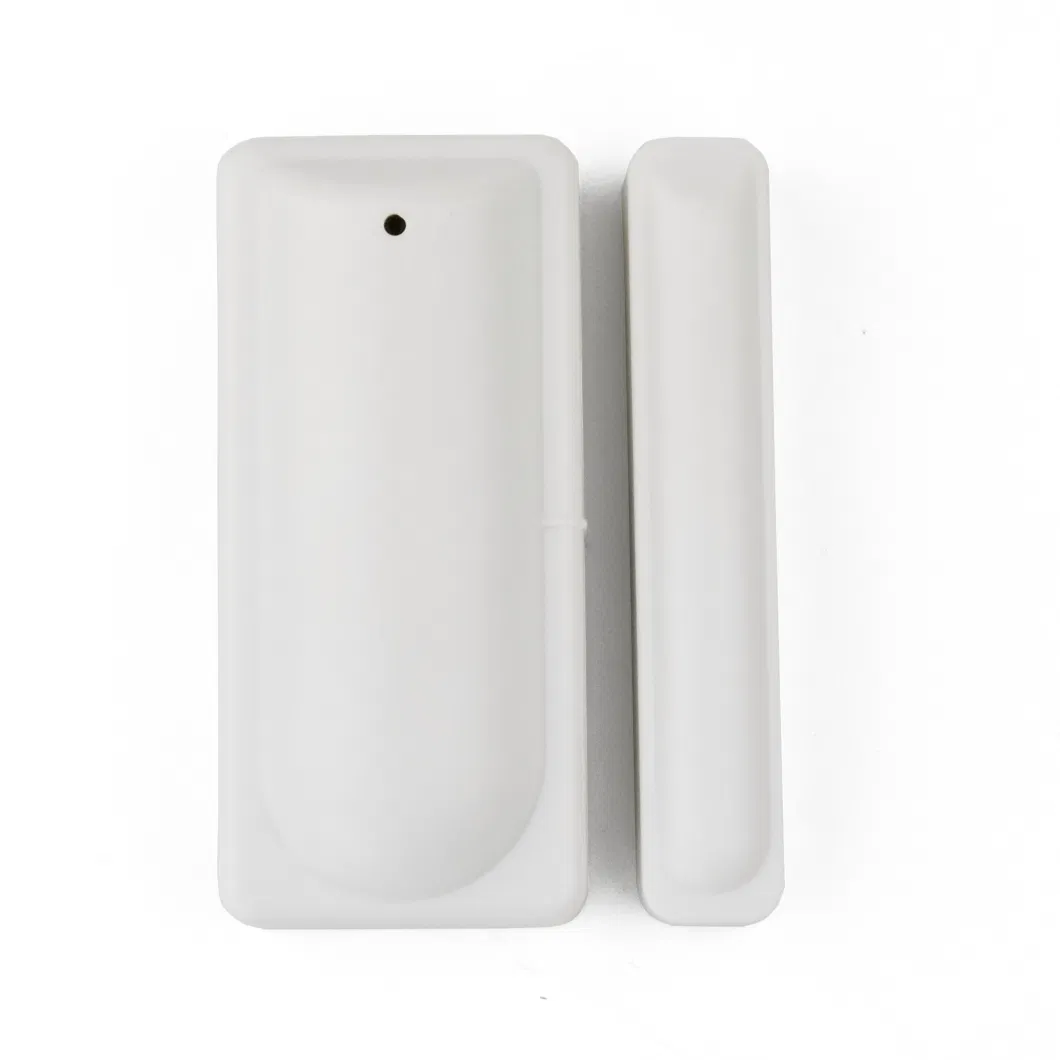

    Door/Window Sensor
    Smart GSM and WiFi Alarm System for Home Protection
    Smart GSM and WiFi Alarm System for Home Protection
    Power Supply: DC 3.6V (ER14250 Lithium Battery x1)
    Consumption: <8uA@Standby, <15mA@Alarm
    Transmitting Distance: <80m (Open Area/No Interference)
    Radio Frequency: 433Mhz Operation Temperature: -10~55ºC
    PIR Motion Sensor
    Smart GSM and WiFi Alarm System for Home Protection
    Smart GSM and WiFi Alarm System for Home ProtectionSmart GSM and WiFi Alarm System for Home Protection
    Power Supply: 3.6V Lithium Battery x1
    Consumption: <15uA@Standby, <25mA@Alarm
    Motion Distance: <12meters Motion Range: 110° Transmitting Distance: <80m (Open Area and No Interference)
    Radio Frequency: 433Mhz Operation Temperature: -10~55ºC
    Remote
    Power Supply: DC 3.6V (ER14250 Lithium Battery x1)
    Consumption: <5uA@Standby, <15mA@Alarm
    Transmitting Distance: <80m (Open Area and No Interference)
    Radio Frequency: 433Mhz Operation Temperature: -10~55ºC
    AT A GLANCE
    Alarm panel
    1. Power button. When your panel is powered
    by built-in backup battery, press and hold it until the screen says Bye to power your panel off. Press and hold it until Hello appears to
    power your panel on. 2. Display window. Display weather, system
    status, time, the alarm's information, menus, and more. 3. Temperature unit button.Tap to choose Fahrenheit or Celsius in home weather screen. 4. AM/PM 24H button.Tap to choose AM/PM or 24 Hour clock in home screen. 5. ARM / ARM STAY button.Tap to arm your security system and double tap to stay arm. 6. DISARM button.Tap to disarm your security
    system. 7. MENU button.Tap to go to menu. 8. Digits Keypad. For entering passcode, setting, dialing and more. 9. RFID tag reader zone. Tap RFID tag here to
    arm or disarm. 10. Speaker. For voice prompt and the alarm. 11. Wall Bracket. For installation. 12. Tamper switch. The tamper switch (lever underneath the bracket) will trigger an alarm
    notification if an attempt is made to remove
    the panel from its installed location. And the
    alarm sounds. 13. Back lid. 14. Siren port. Plug in the siren cable here. 15. Power port (Micro USB). Plug in the power cable here. 16. EOLR connections. Socket for End of Line Resistor hardwired zones connections. 17. Micro SIM card slot. Install the SIM card
    here.
