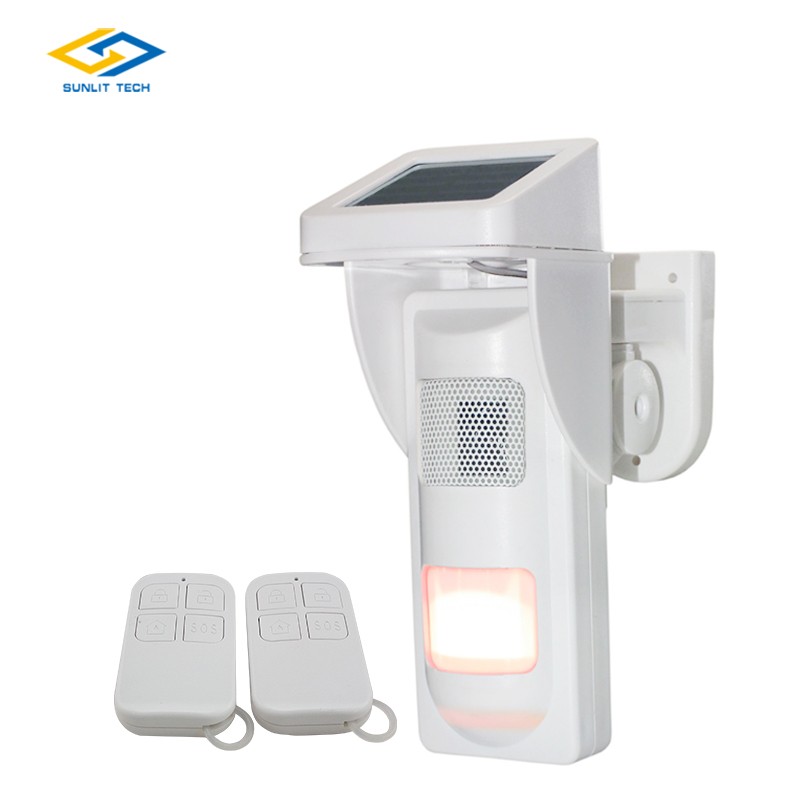

OTD-40LM PIR sensor company

Features:

1.DRO micro radar+2 independent dual PIR detection technology.

2.Adopts multi-grades intelligent signal processing software, full analysis and processing of all kinds of false alarms.

3.Adopts micro power-consumption 8 digits CMOS single chip control.

4.Professional grade IP-65 water-proof design, fit for fully outdoor installation

5.Double layer filtering system, anti strong light interference..

6.Digital analysis pet-immunity technology.

7.MW anti-masking technology, can detect the attempt of blocking MW or PIR channel.

8.3 colors LED display, can recognize signals of PIR, MW, anti-masking and troubles.

9.Unique anti-masking and trouble output.

10.AND/OR modes for option, fit for various kinds of environments.

11.MW range adjustable.

12.With high/low sensitivity selection.

13.Unique full-range temperature compensation technology.

14.Anti strong EMI interference.

15.EI control mode for option.

16. Installation Height：0.8m-1.2m

Parameter:

Operation voltage/current 9-16V/DC   25mA

Detection distance 12m   9°

Installation height 0.8m-1.2m

MW frequency 10.525GHz

Sensitivity L/H for option

RFI/EMI protection >30V/m   500MHz

Alarm output 200mA/24V

Anti-mask /trouble output 100mA/24V

Tamper output 300mA/24V

Operation temperature -20℃～+55℃

Operation humidity 5%-95%(RH)

Anti white light >10000LUX

Operation mode Dual-tech or single-tech alarm modes for option

Detection speed 0.2m/s to 3.5m/s

Pet immunity 30Kg
