SL-GW250 GSM & WiFi Alarm System
The gsm alarm system can be controlled on-site by the remote tag supplied, or remotely from anywhere with our free dedicated mobile application.
- Commodity name： SL-GW250 GSM & WiFi Alarm System
- Product Details
-
Product Description
SPECIFICATIONS
Front View
Side View
Back View
Inside Structure
A Kit Including: 1 control panel + 1 PIR Sensor + 1 Magnetic Contact +2 Remote Controllers +1 Power Supply + 2 Keys
The host cellular+Wi-Fi model is a dual network system that utilizes both Wi-Fi and
cellular(GSM/2G).
All sensors are wirelessly connected to the hub. In the event of alarm activation, for
example, when a sensor is triggered, a push notification will be sent and an alarm call
will be made automatically to all registered users.
The system can be controlled on-site by the remote tag supplied, or remotely from
anywhere with our free dedicated mobile application.
The system can connect with up to 100 wireless sensors, 10 remote tags and 10 RFID
tags.
Users Figure
Alarm Host
Power Supply: Micro USB 110/220VAC to 5V, 1000mA
Backup Battery: 3.7V, 500mAh Rechargeable Lithium Battery
Consumption: <55mA@normal Radio
Frequency: 433Mhz
GSM: 850/900/1800/1900MHz
Wi-Fi: IEEE802.11b/g/n
Operation Temperature: 0~55ºC
Remote Controller
Power Supply: DC 3V (CR2025 Lithium Battery x1)
Standby Current: <5uA Alarm
Current: <15mA
Transmitting Distance: <80m (Open Area and No Interference)
Radio Frequency: 433Mhz
Operation Temperature: 0~55ºC
Door/Window Sensor
Power Supply: DC 3.6V (ER14250 Lithium Battery x1)
Standby Current: <8uA Alarm Current: <15mA
Transmitting Distance: <80m (Open Area/No Interference)
Radio Frequency: 433Mhz
Operation Temperature: 0~55ºC
PIR Motion Sensor
Power Supply: 3.6V ER14250 Battery x1
Standby Current: <15uA
Alarm Current: <25mA
Detection Scope: <12m/110°
Transmitting Distance: <80m (Open Area and No Interference)
Radio Frequency: 433Mhz
Operation Temperature: 0~55ºC
RFID Tag
Chip: 4100/4200
Frequency: 125KHz
Read Distance: <2cm
Wireless Siren
Power Supply: Micro USB 110/220VAC to 5V, 1000mA
Backup Battery: 3.7V, 300mAh Rechargeable Lithium Battery
Standby Current: <15mA
Alarm Current: <230mA
Volume: 100dB
Radio Frequency: 433Mhz
Operation Temperature: 0~55ºC

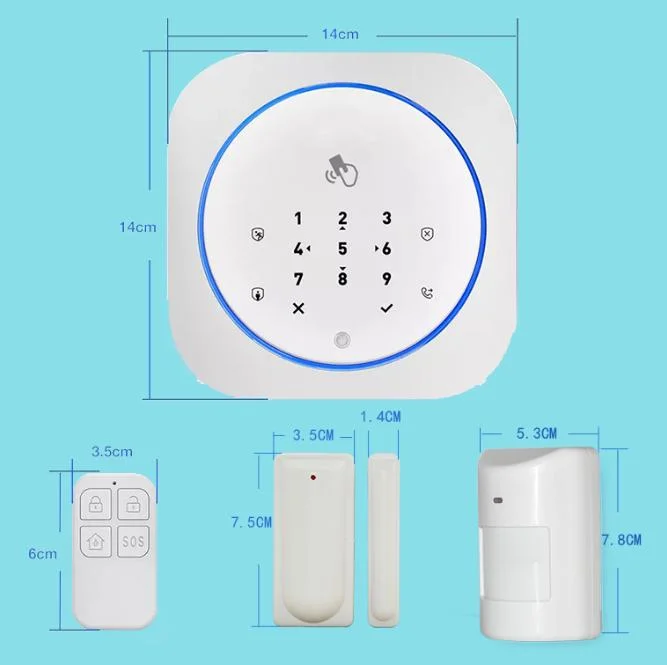

Size For Each Parts
Installation Position In House
Black Color For Option
