SL-G24

Features:
GSM Quad-Band 850/900/1800/1900MHz enable SL-G24 works great in worldwide.
99 zones for security intrusion alarm, elderly care, SOS help, 7*24 hours safety applications.
10 different zone types and zone name editable.
Multiple status optional: Stay, Away, Bypass, Schedule Arm/Disarm.
User friendly menu with 10 languages: English, Spanish, French, German, Russian, Italian, Indonesian, Czech, Danish, Chinese.
Visible information on big LCD screen, easy setting and operation by touch keypad.
Two way voice communications, regular phone call as hand set supported.
2 wireless switch channel for remote control & door access (*works withSL-G24-WS1, SL-G24-WS2).
Just simply dial in to the SL-G24, change the status to Arm / Stay / Disarm by missed call, or create voice conversation automatically.
Monitoring zone for take care of elderly daily life activities.
Temperature monitoring alarm available.
Alarm panel & wireless sensors battery low power monitoring.
Backup rechargeable battery inside, AC power lost alert available.
Audible alarm inside, support wireless siren
Ademco Contact ID protocol over GPRS data supported.
Easy DIY--Smart phone APP for configuration & operation.
Up to 999 event logs for record alarm, call in or out, etc.

Specifications:
GSM Frequency : Quad-band 850/900/1800/1900 MHz
Wireless Zones : 95
Radio Frequency : 433.92MHz for sensors,315MHz for wireless switch (*optional)
Wired Zones : 2, NC/NO dry contact
Tamper Switch Zone : 1, at back side of panel
Digital Output : 1 relay, NC/NO dry contacts,3A/240VAC
Stored Phone No. : 9 phone numbers for alarm SMS & call
Max. Remote Control : 9 pcs
Event Logs : 999 alarm logs, 99 operation logs
Internal Audible Alarm : 95dB
CMS KingCenter : CMS-01, CID CMS (GPRS data)
Rated Power Supply : 9~24V DC/1A
Power Consumption : 12V input Max. 270mA, Standby 30mA
SIM Card : Support 3V SIM Card
Antenna : 50 Ω SMA Antenna interface
Temperature Range : -20~+60 °C
Humidity Range : Relative humidity 90% (condensing free)
Backup Battery : 3.7V/900mAH Li-ion rechargeable
Exterior Dimension : 18.8*13.1*2.8 cm (7.4*5.1*1.1 inch)
Net Weight : 320 g (0.7 lb)

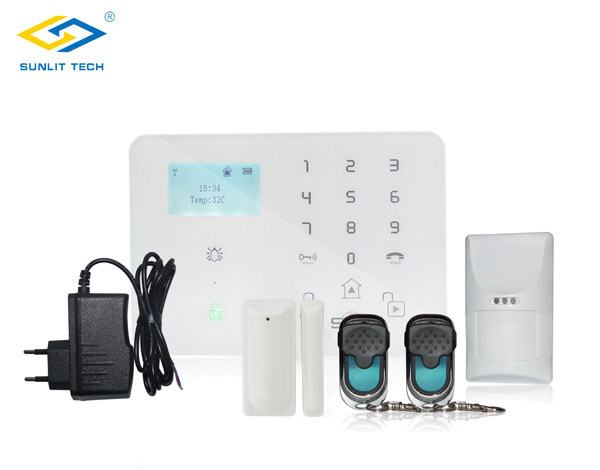

Standard Package
GSM Alarm Panel *1
Wireless PIR Motion Sensor *1
Wireless Door Contact Sensor * 1
Remote Control *2
AC/DC Power adapter *1,
User Manual *1
Packing size: 20*15*9 cm (8*5.8*3.5 inch)
Gross weight: 820 g (1.8 lb)
