SL-TX-16

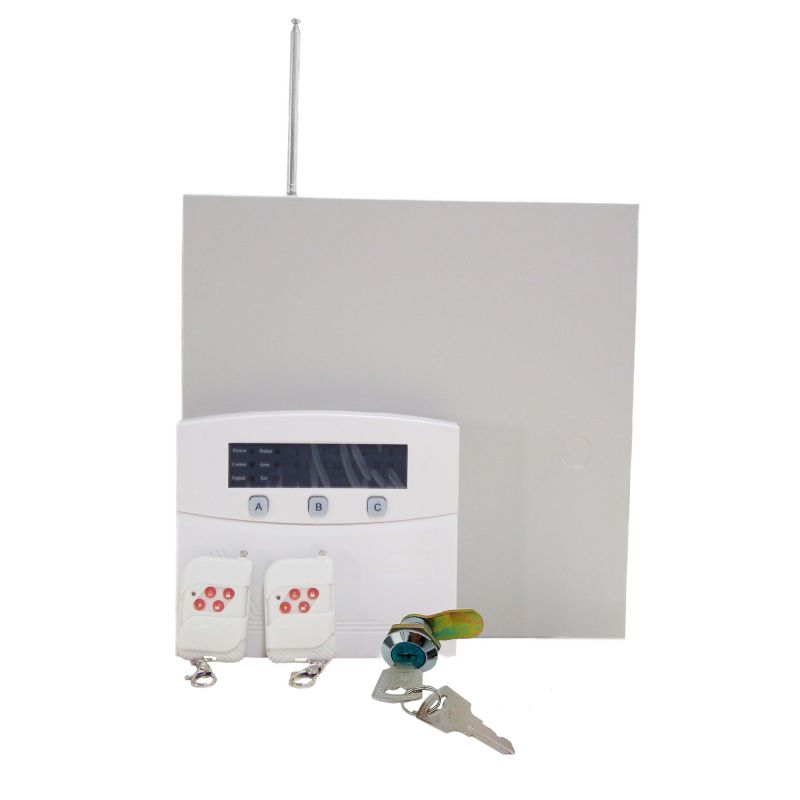

SL-TX-16:Wired & Wireless Compatible Control Panel With 16 Zones

Product Name:Sub-line Intelligent Alarm Control Panel



Features:
1. Including 7 kinds of arming modes: single zone arming, certain time arming, outside arming, peripheral arming, overtime arming, long-distant arming, compulsory arming.
2. Including 5 kinds of disarming modes: single zone disarming, password keyboard disarming, long-distant disarming, receiving signal to disarm, use the remoter to disarm.
3. Can be programmed to carry out a variety of settings
4. In order to improve the safety, there is 1 ground 6-digit master password and 15 sub-grounds password can be set up on-demand .
5. Can set up 6 grounds alarm telephone number(the fix telephone number or mobile phone) and 2 grounds alarm centre telephone number.
6. Built-in voice module, can be recorded in 10-20 seconds of voice, voice alarm.
7. The control panel has the function of rush alarm , even the telephone line is using , it will never fail to report the information.
8. The use of high-speed digital communications, compatible with Contact ID、4+2、SL digital Communication protocol, to alarm centre to send the alarm information.
9. The control panel can be built-in DC12V/74AH Rechargeable batteries, To ensure that the shutdown does not power.

Technical:
Power Supply: AC220V+10%
Static Current Consuption: ≤100mA
Power: ＜1.5W
Sensor Output: Above 400mA, 12V
Current Output: DC12～15V
Wireless Frequency: 315MHz
Environment Temperature: 40～70%
Himidity: ＞8000LUX
Weight: 2.5KG
Dimension: 255*235*70mm
